The Donnelly Centre for Cellular and Biomolecular Research

Toronto, CA

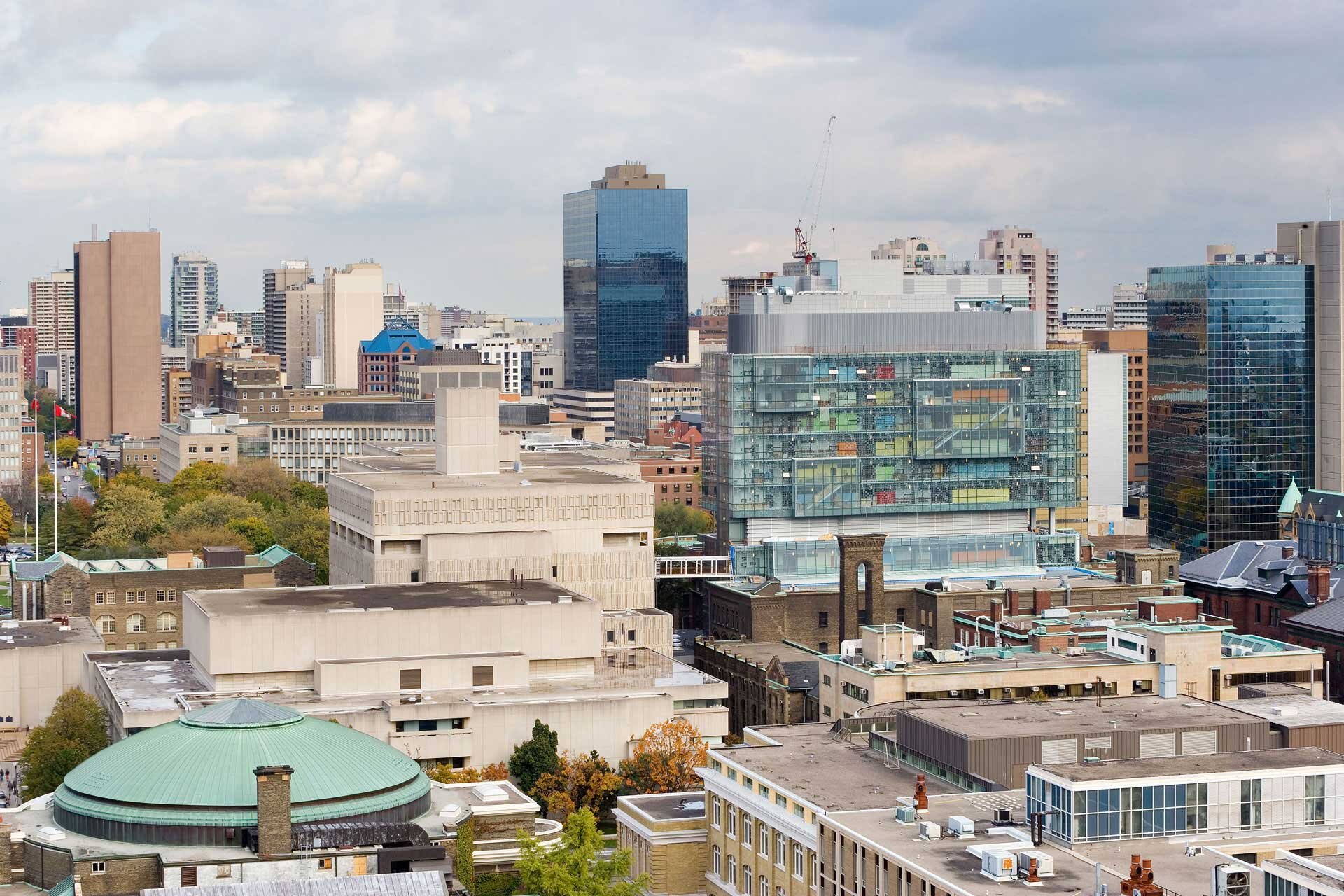

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. City skyline with medium-sized and tall buildings, including the Donnelly Center with its glass facade, viewed from above under a cloudy sky.
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Night shot of the multi-story office building with a glass facade, whose brightly lit floors reveal interiors, staircases and colorful wall surfaces.

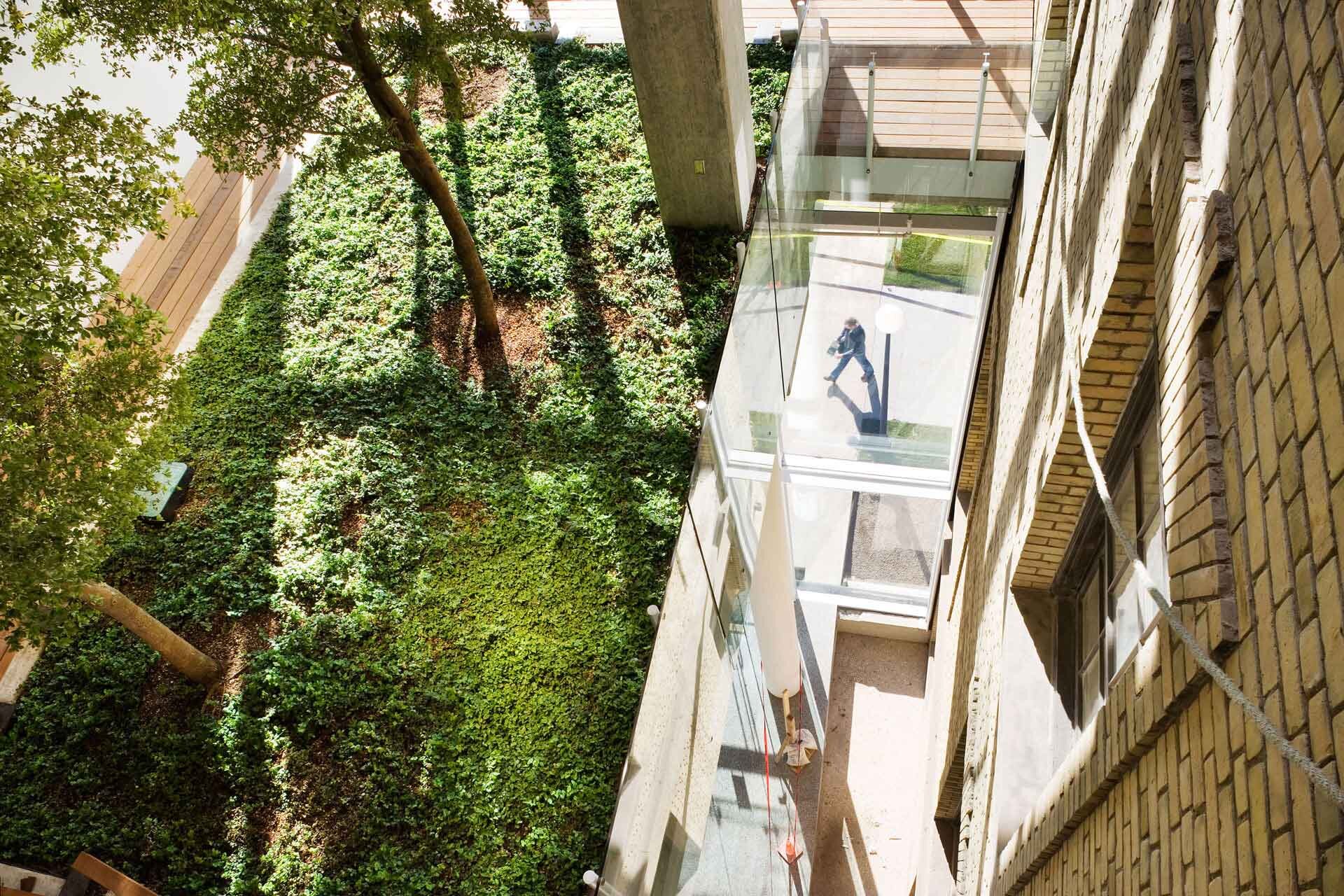

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. View from above of a glass roof over the entrance area of ​​the building, under which a person is walking, next to a green courtyard with trees and ground cover.
swipe
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. City skyline with medium-sized and tall buildings, including the Donnelly Center with its glass facade, viewed from above under a cloudy sky.
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Night shot of the multi-story office building with a glass facade, whose brightly lit floors reveal interiors, staircases and colorful wall surfaces.
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. View from above of a glass roof over the entrance area of ​​the building, under which a person is walking, next to a green courtyard with trees and ground cover.

The Donnelly Centre for Cellular and Biomolecular Research (CCBR) is a 12-story high transparent box, elevated above a public concourse. It provides the sophisticated laboratories and tools to enable the University of Toronto to build on its strengths in bio-molecular research. The design supports the CCBR’s interdisciplinary concept, fostering collaboration among 400 researchers—from computer scientists, to physicians, pharmacists and engineers—in a flexible, high-tech facility.

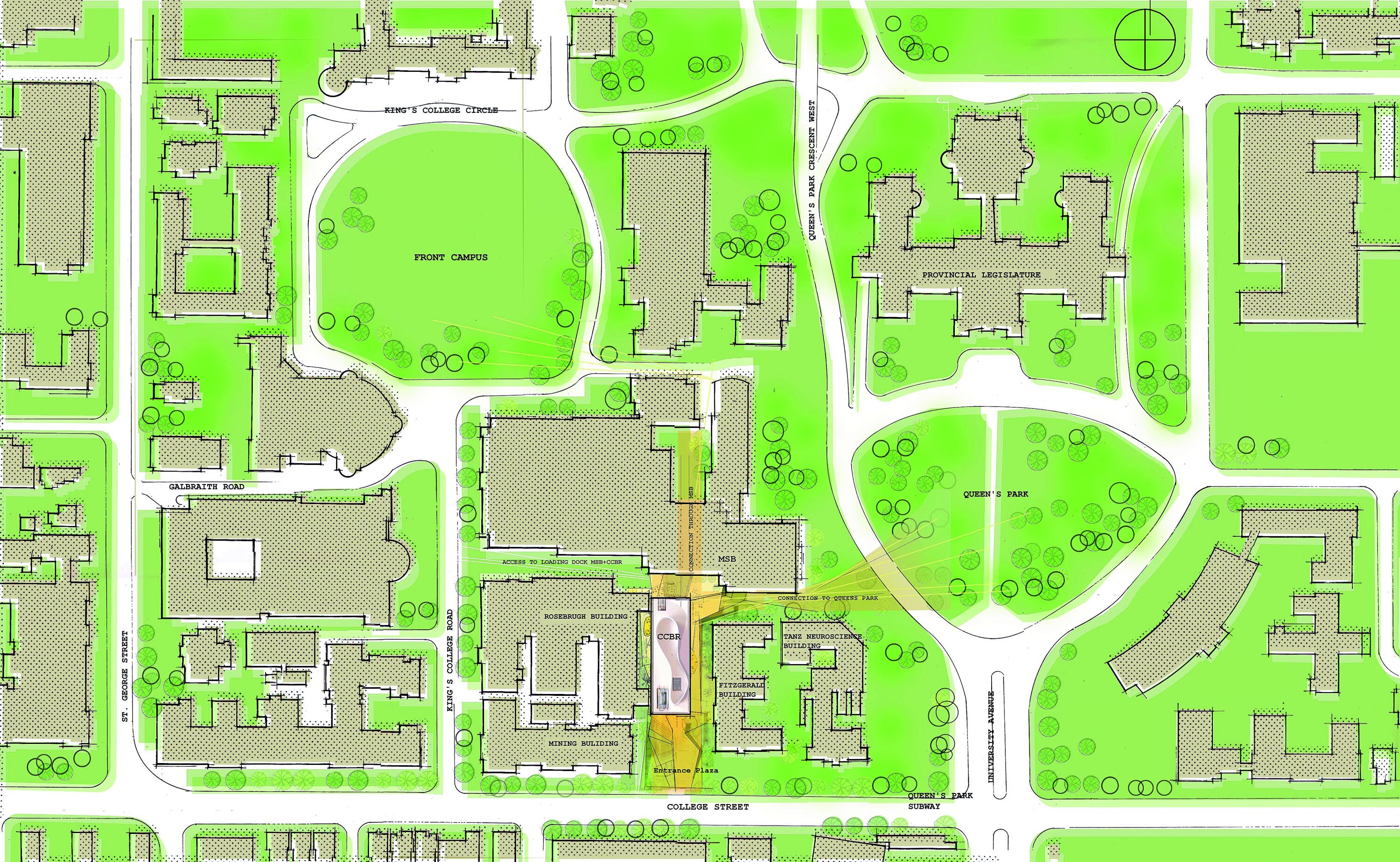

Site Plan

Situated at the heart of the existing downtown campus, between Kings College Circus and Queens Park, the building creates a new university presence on a busy city thoroughfare. Both the physical appearance and work environments reflect the university’s leadership in genome research and its role in uncovering the genetic foundations of disease. At the same time, the project bridges the historic character of the surrounding campus structures with CCBR’s cutting-edge technological needs.

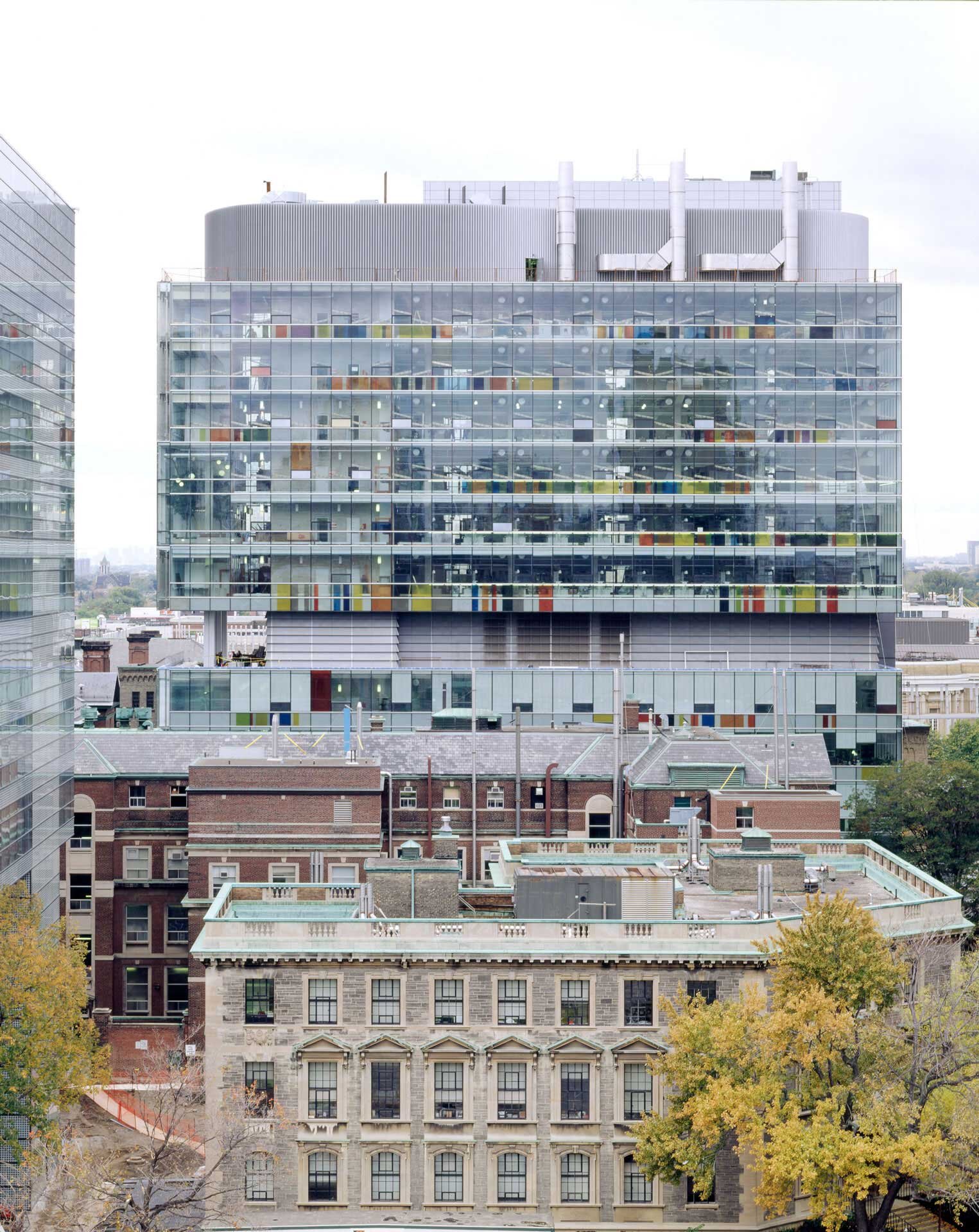

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Front view of the glass office building with visible interior and roof structure, rising above older brick and stone buildings in an urban environment.

A glass roof spanning the newly created interior courtyard creates a large atrium, while double- and triple-height gardens ascending the tower define the building’s layout and appearance, offering a valuable extension of individual workspaces. The relatively shallow floor plans enable maximum use of daylight and—technical demands permitting—allow for natural ventilation. The layering of the facades provides both shading and glare protection and a distinct individual expression.

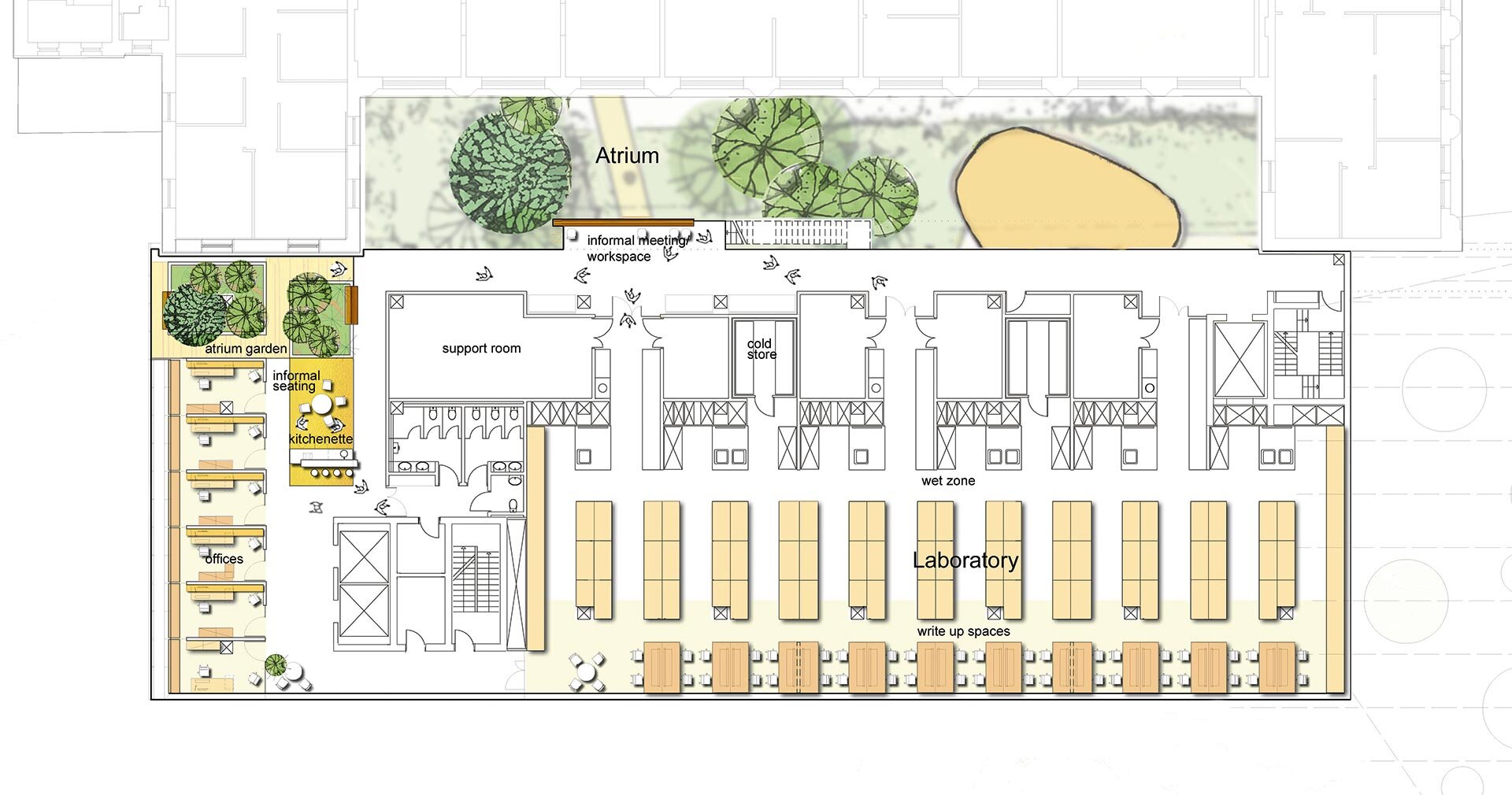

Level Laboratory

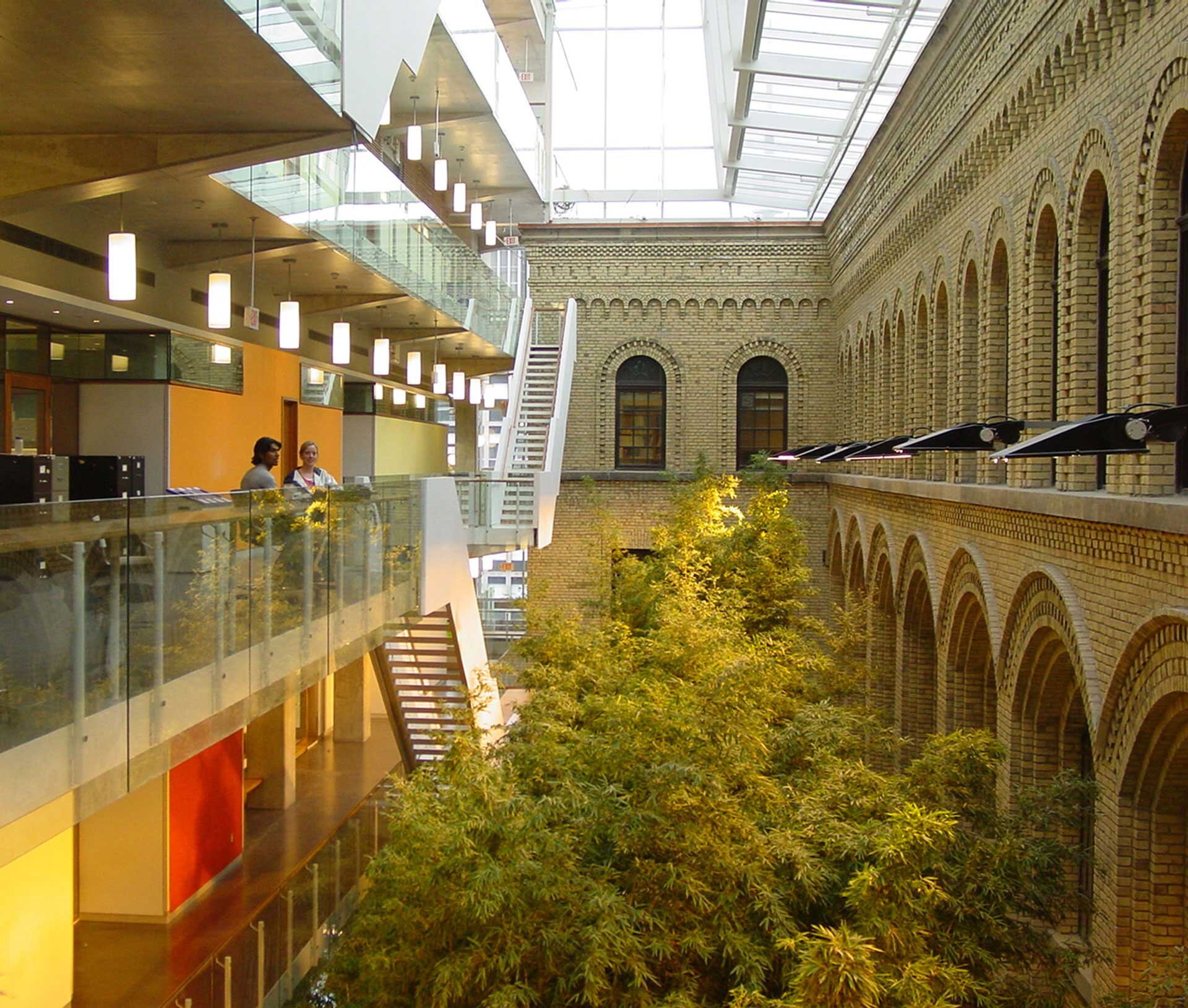

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Interior atrium with  meeting areas and stairs, overlooking a planted courtyard, beside a brick facade with arched windows.

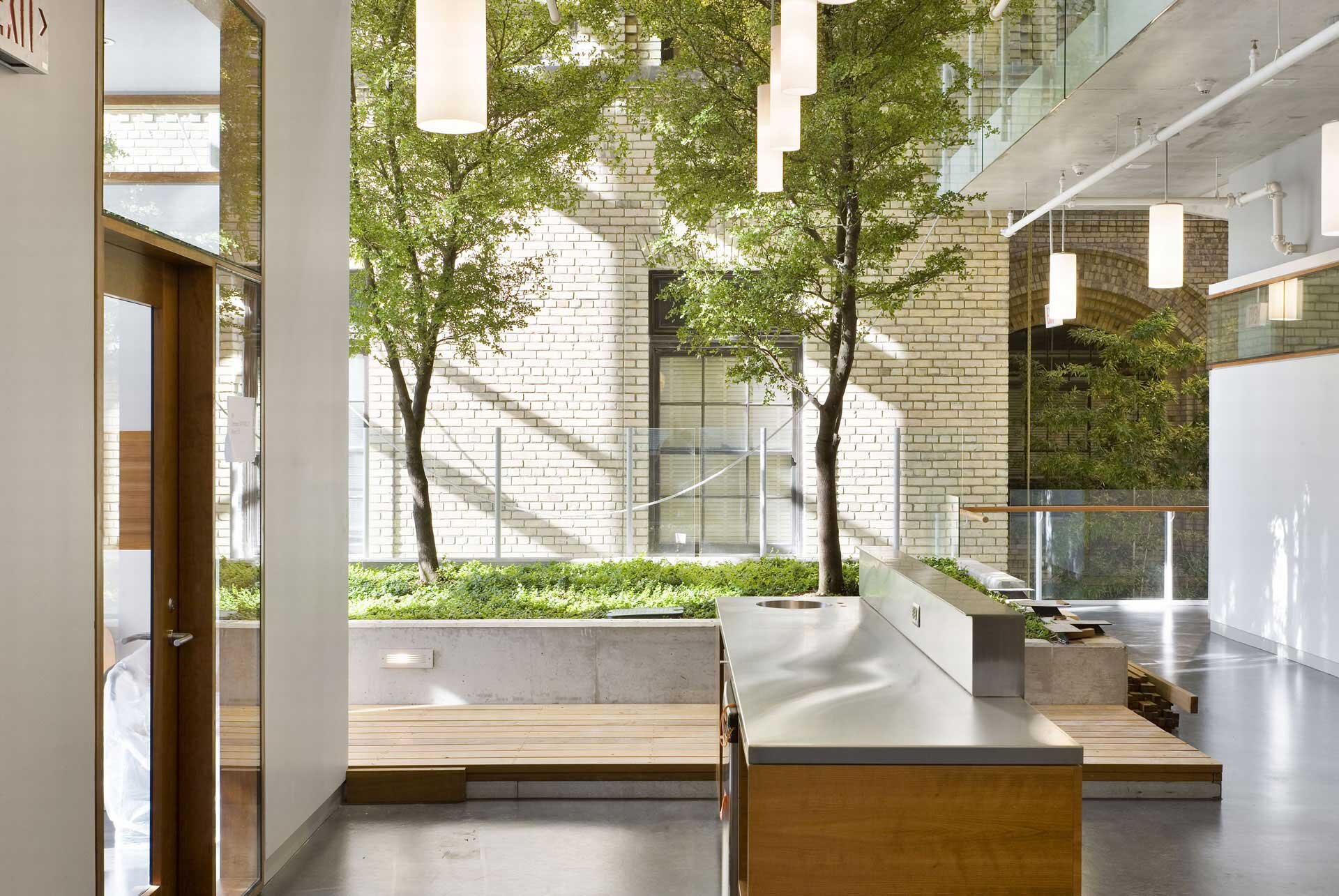

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Indoor courtyard with trees and planted beds beside a brick wall, viewed from a modern interior with a counter and hanging lights.

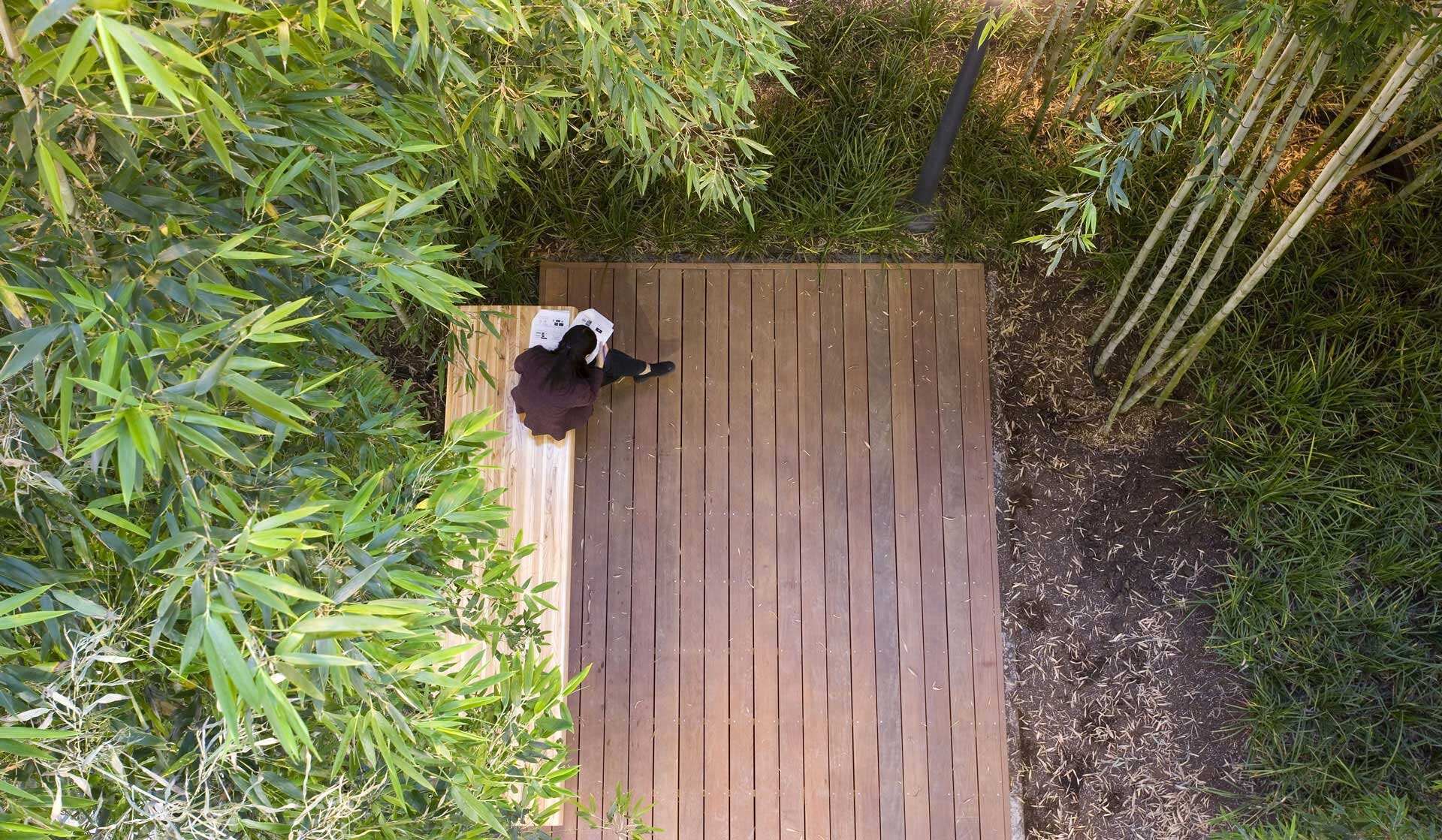

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Top-down view of a person reading on a wooden deck surrounded by dense bamboo and greenery.
swipe
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Interior atrium with  meeting areas and stairs, overlooking a planted courtyard, beside a brick facade with arched windows.
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Indoor courtyard with trees and planted beds beside a brick wall, viewed from a modern interior with a counter and hanging lights.
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Top-down view of a person reading on a wooden deck surrounded by dense bamboo and greenery.
Client
University of Toronto
Architects
Behnisch Architekten with architectsAlliance, Toronto
Address

160 College Street
Toronto, ON M5S 3E1
Canada

Gross Area

20.750 qm / 223,270 sq.ft.

Gross Volume

82.000 cbm / 2,895,420 cu.ft.

Photography

Tom Arban
David Cook

Awards

2006 Award of Excellence, Ontario Association of Architects
2006 RIBA International Award
2006 Lubetkin Award, shortlisted
2006 Architectural Record / Business Week Award
2008 Governor General’s Medal in Architecture created by the Royal Architecture Institute of Canada

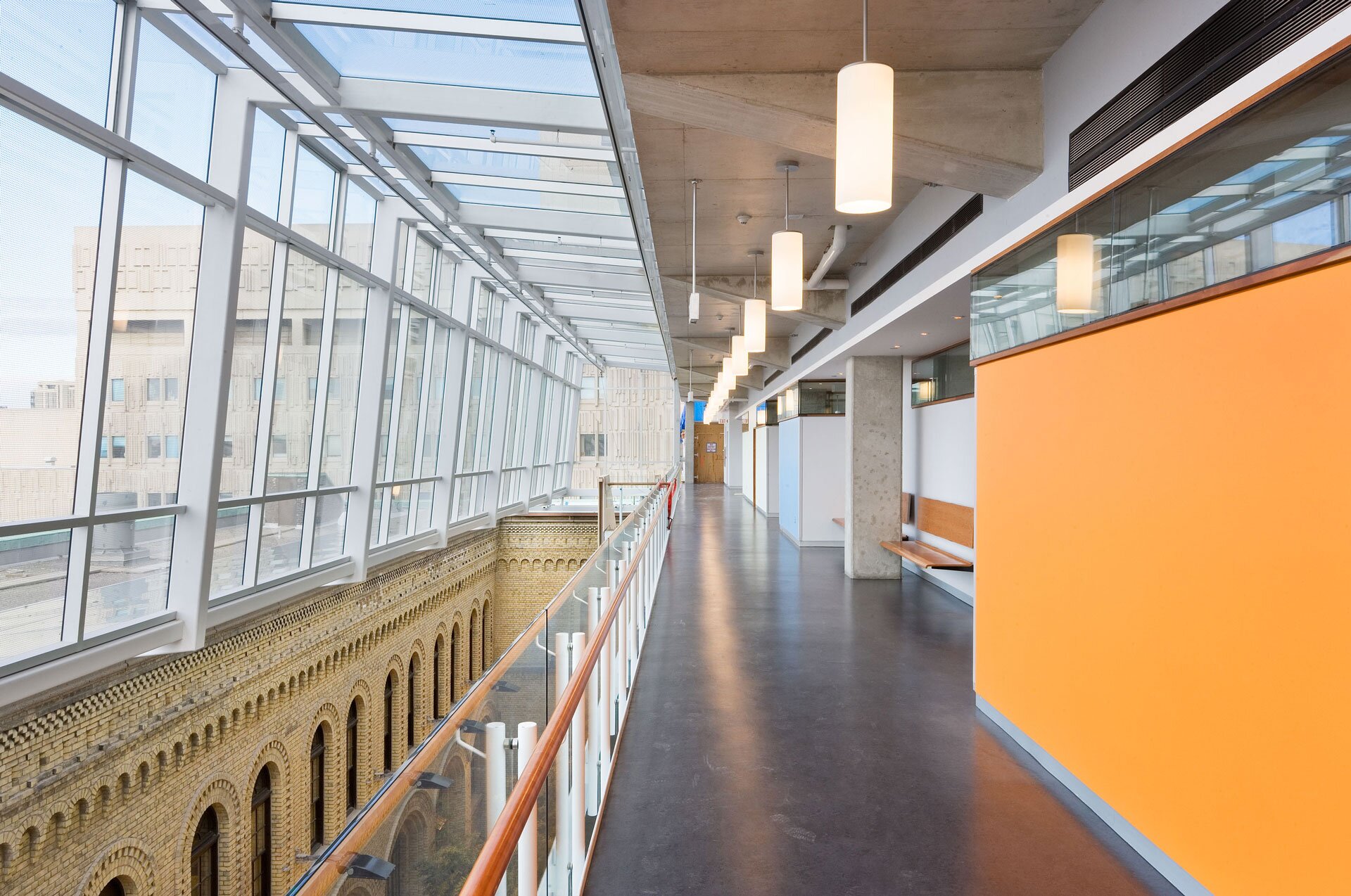

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Interior corridor with glass facade and skylight, overlooking a brick atrium below, with railings, pendant lights and an orange accent wall on the right side of the picture.

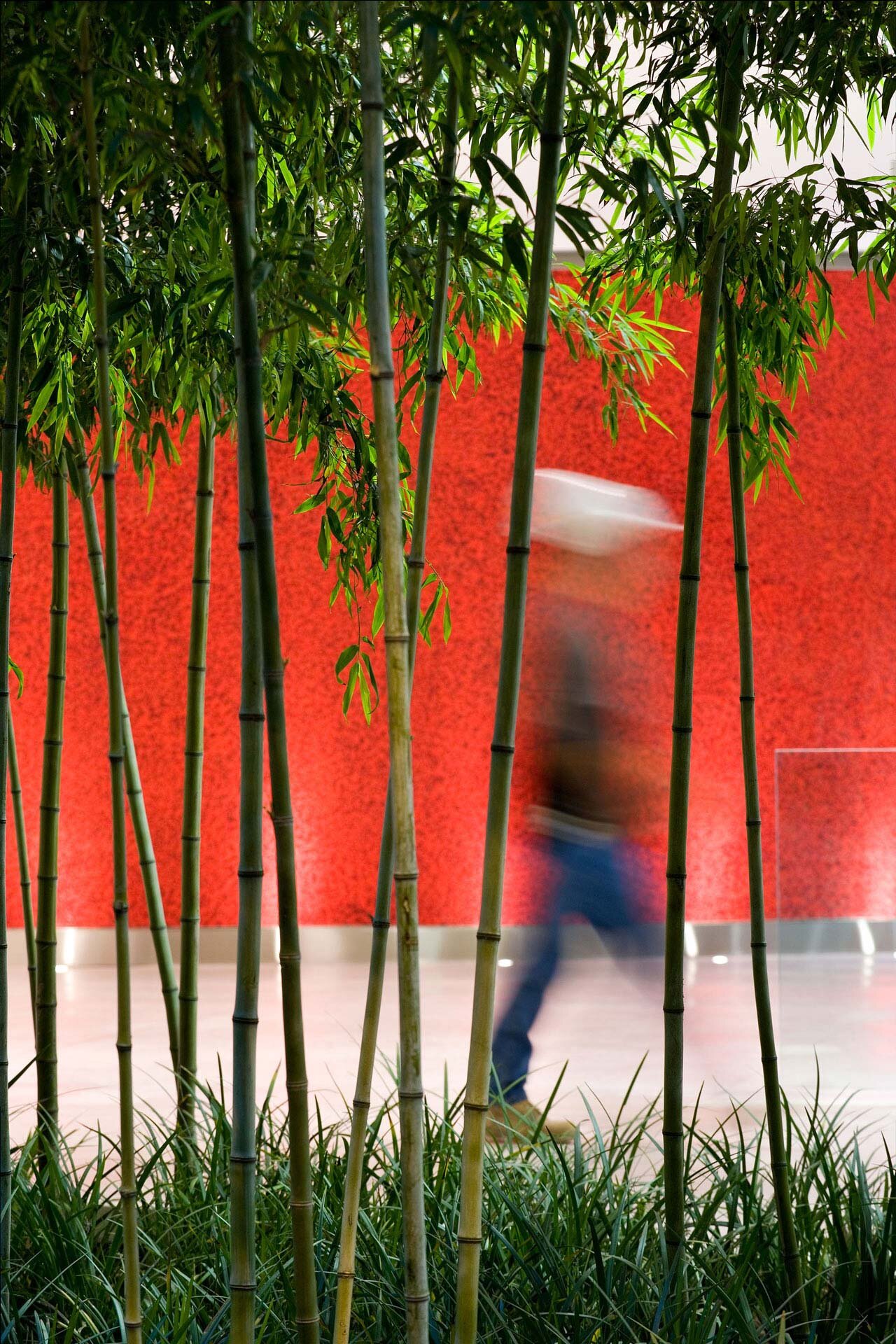

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Bamboo plants in foreground with a blurred person walking past a bright red wall in the background.
swipe
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Interior corridor with glass facade and skylight, overlooking a brick atrium below, with railings, pendant lights and an orange accent wall on the right side of the picture.
Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. Bamboo plants in foreground with a blurred person walking past a bright red wall in the background.

Beneath the transparent structure, the public concourse houses offices, seminar facilities, and a faculty cafeteria. Its architectural language, shaped by site constraints, intentionally contrasts with the rectilinear structure above—creating a new public forum for the university, where a modulated landscape preserves existing public through-fares.

swipe

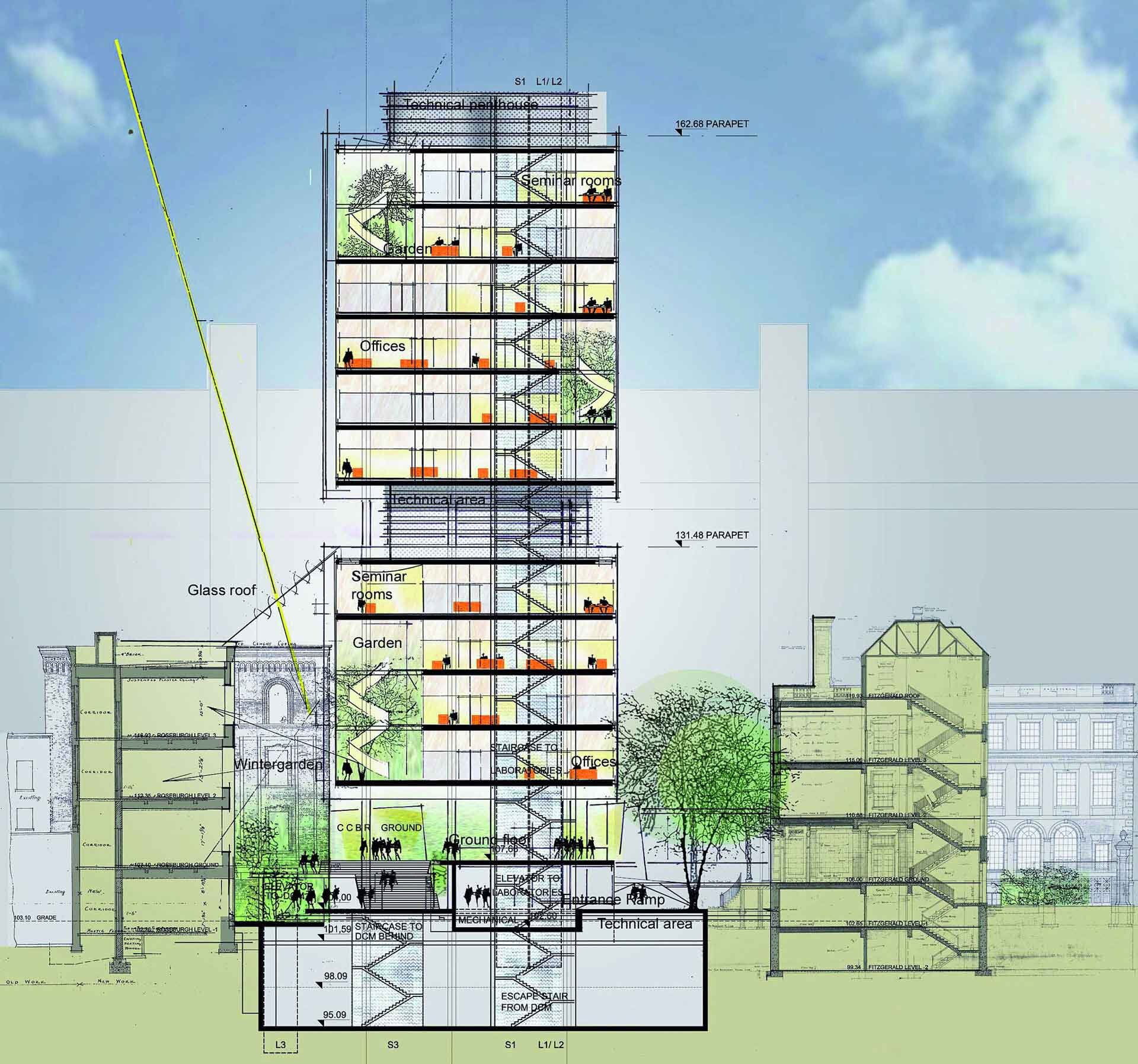

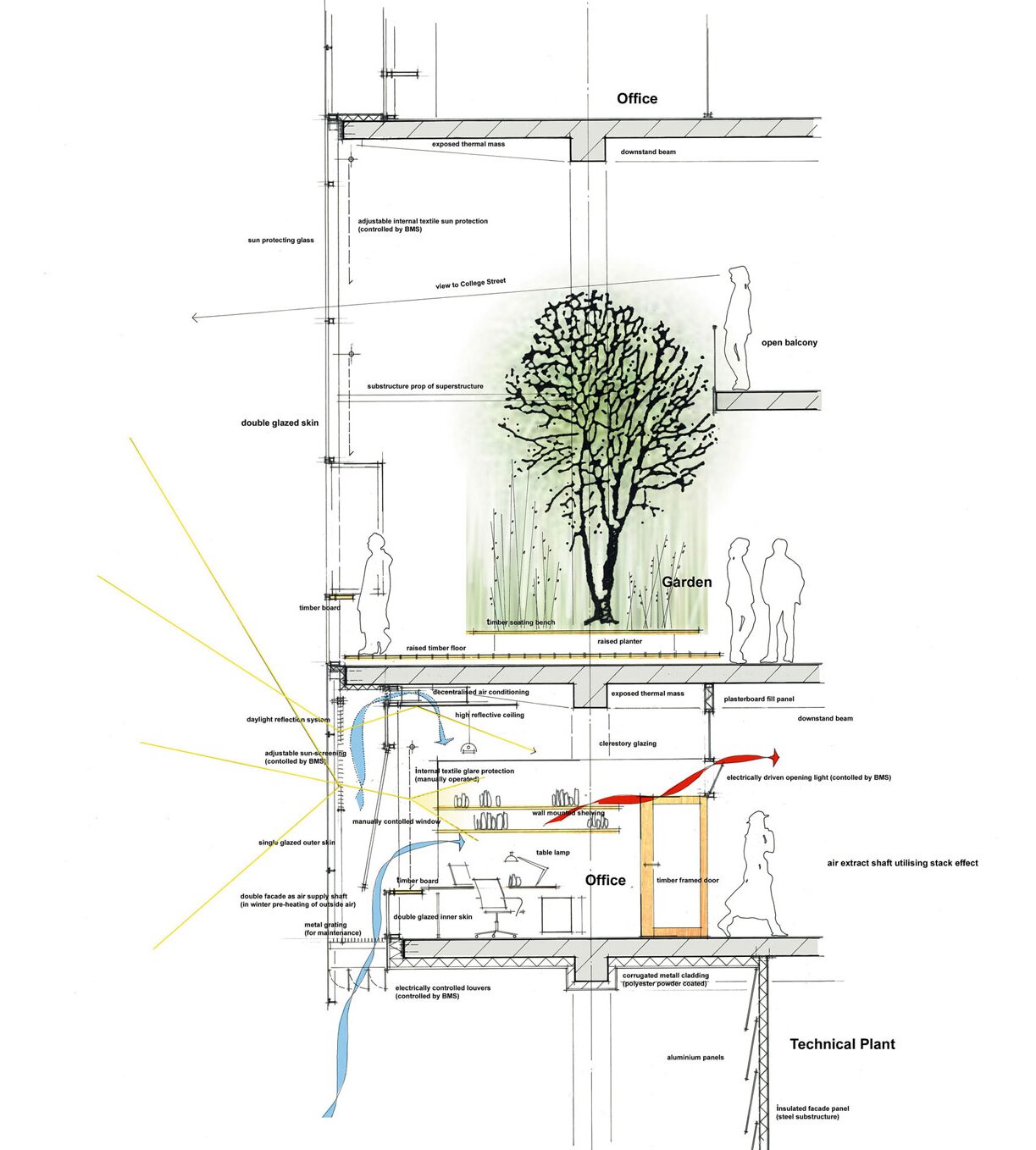

Sections

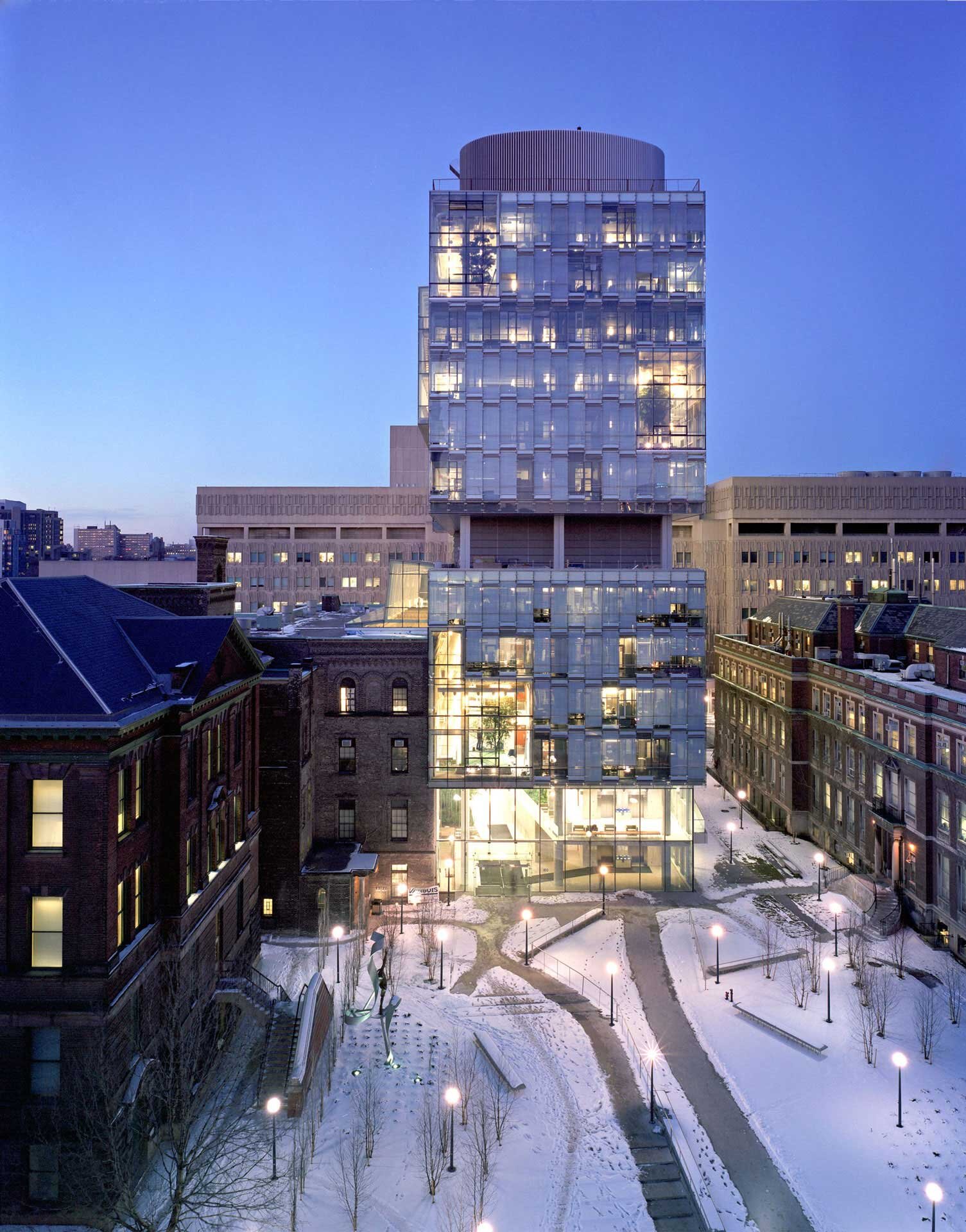

Project by Behnisch Architekturbuero, The Donnelly Centre for Cellular and Biomolecular Research. The illuminated glass high-rise building at dusk, surrounded by older buildings and a snowy courtyard with paths and streetlights.
